Free Space Path Loss Calculator

Free Space Path Loss Calculator. The same amount of energy spreads out on an incremented spherical surface at an incremented. Enter values as mentioned in the example to calculate free space path loss.

CTS 115 Free Space Path Loss Clear To Send from www.cleartosend.net

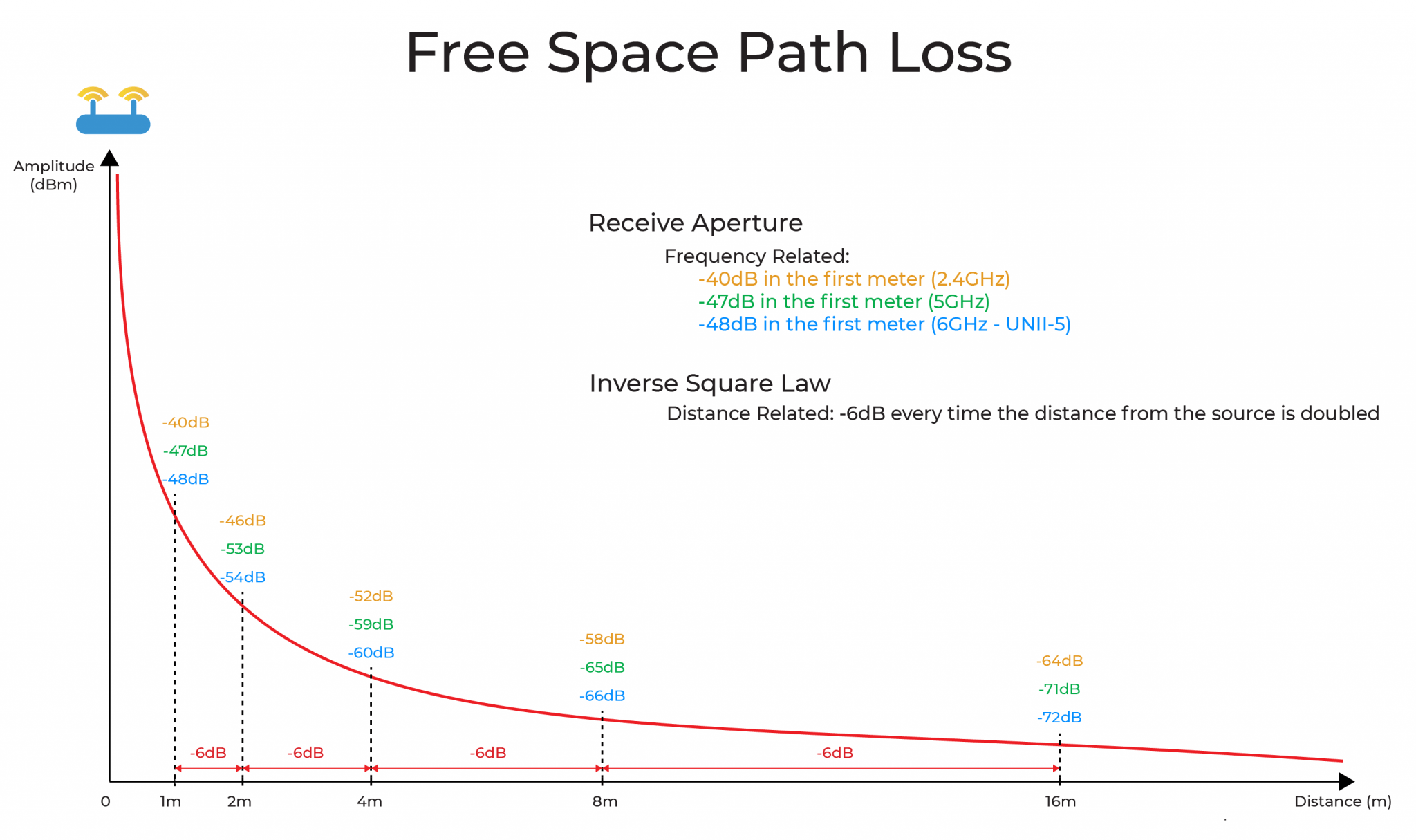

Free space path loss (or fspl) represents the amount of energy that a given radio wave loses as it travels through the air away from its source. If you wish to enter distance in kilometer , check the calculator here. The greater the frequency the greater the path loss.

Source: www.pasternack.com

Λ is the wavelength of the signal. The path loss is often referred to the wireless attenuation (in the unit of decibel i.e.

Source: www.radartutorial.eu

Path loss(db) = 32.44 + 20*log(f(mhz)) + 20*log(d(km. Free space path loss calculator calculates the loss (in db) between two antennas where the gain, distance and frequency are known.

Source: semfionetworks.com

Frequency [mhz] path loss [db] distance. This equation is only accurate at a distance from the transmitter.

Source: www.allaboutcircuits.com

Cisco has a couple of good calculator tools to allow for free space path loss in the rf link budget design calculations. Free space path loss (fspl) calculator.

Source: www.cleartosend.net

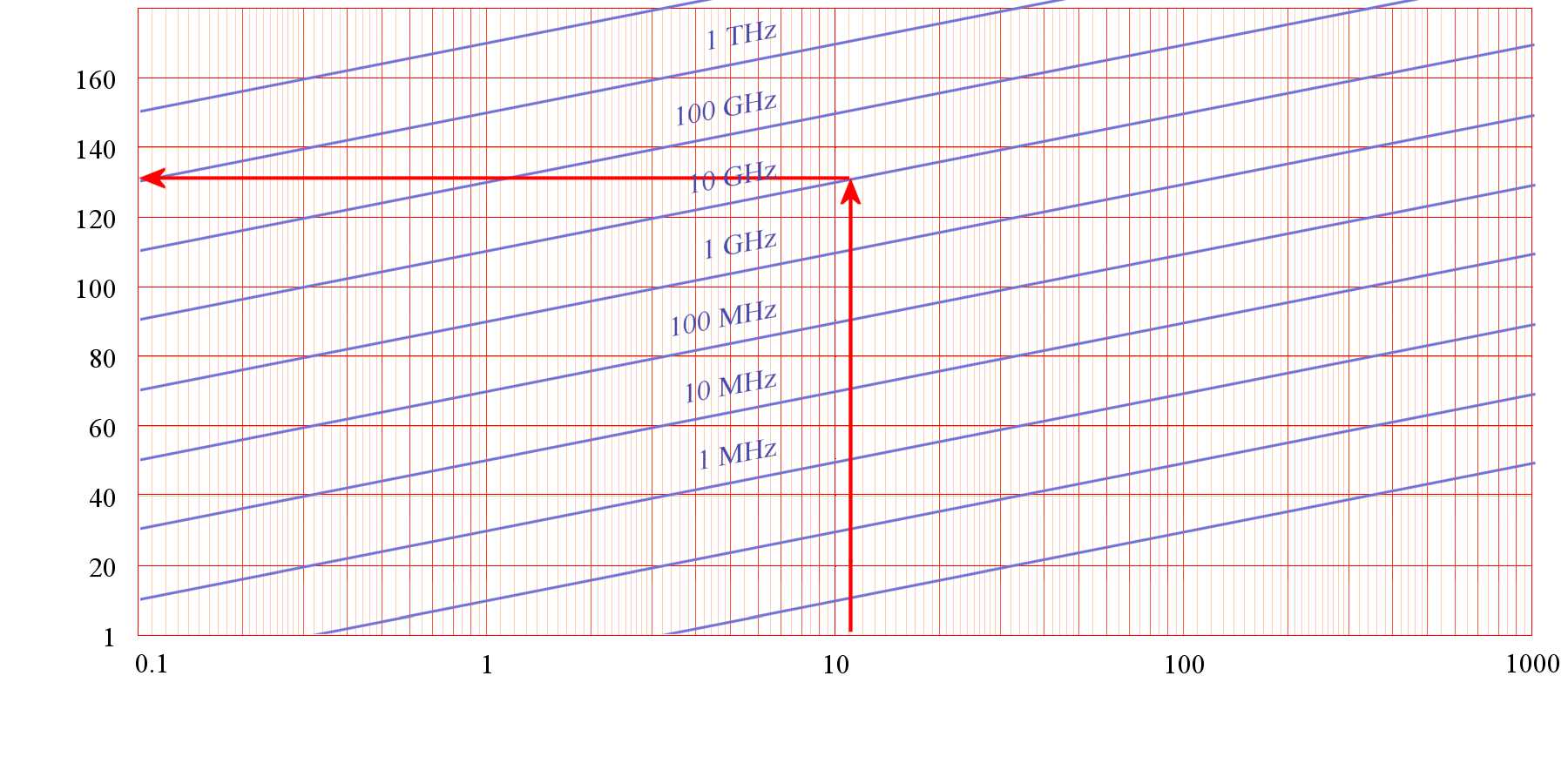

Areas with the same power density therefore form spheres ( a = 4πr² ) around the radiator. Free space loss (db) = 36.6 + 20 x log (frequency (mhz) x distance (miles)) freq in mhz.

Source: www.ahsystems.com

For derivation of the free path loss formula check here. Free space path loss is a major issue when dealing with rf links at a long distance, particularly outdoors.

Source: semfionetworks.com

The path loss is often referred to the wireless attenuation (in the unit of decibel i.e. Free space path loss (or fspl) represents the amount of energy that a given radio wave loses as it travels through the air away from its source.

Source: www.pasternack.com

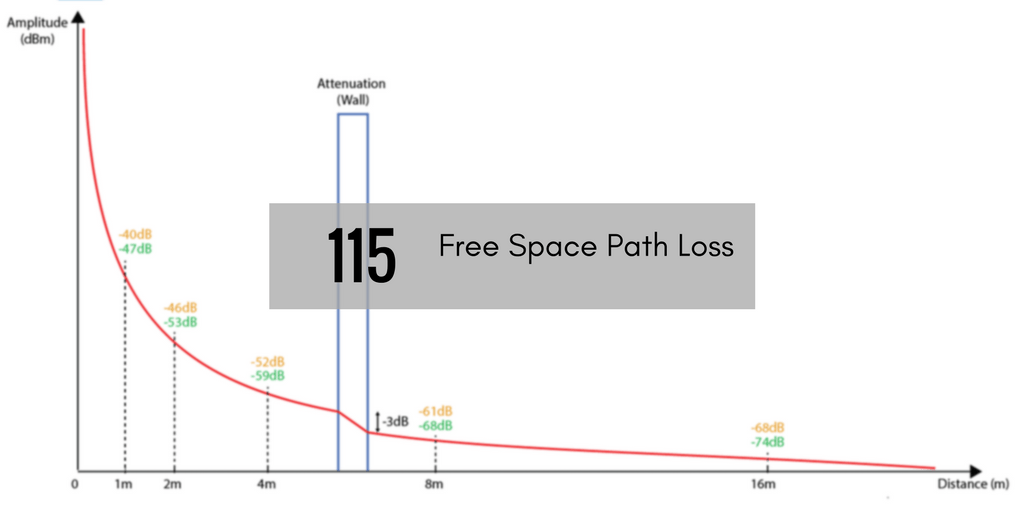

Free space path loss (or fspl) represents the amount of energy that a given radio wave loses as it travels through the air away from its source. The free space path loss is the loss in signal strength of a signal as it travels through free space.

Source: semfionetworks.com

The friis transmission equation is used to calculate the power received at an antenna from another antenna at a specified distance, and transmit frequency. This value is usually calculated by discounting any obstacles or reflections that might occur in its path.

Source: www.radartutorial.eu

The document has moved here. If you wish to enter distance in kilometer , check the calculator here.

Source: 5g-tools.com

It is something that we can calculate by. This page provides information about free space path loss calculator (fspl).

Source: www.rfwireless-world.com

The loss increases with increas in frequency and obviously with increase in distance. This page provides information about free space path loss calculator (fspl).

Λ Is The Wavelength Of The Signal.

Path loss as per free space model (output): It is something that we can calculate by. This page provides information about free space path loss calculator (fspl).

Example Of Free Space Path Loss Calculator:

Free space path loss calculator calculates the loss (in db) between two antennas where the gain, distance and frequency are known. Ieee defines it as the loss between two isotropic radiators in free space, expressed as a power ratio. If you wish to enter distance in kilometer , check the calculator here.

* All Conversions Are Based On Free Space Conditions (Impedance Of 377 Ohm) Additional Resources:

D is the distance between receivers. Cisco has a couple of good calculator tools to allow for free space path loss in the rf link budget design calculations. The document has moved here.

900 Mhz ) (Input1) :

Areas with the same power density therefore form spheres ( a = 4πr² ) around the radiator. For example, if you wish to input 25000000. This equation is only accurate at a distance from the transmitter.

Free Space Path Loss Calculator.

Fspl = ( 4π⋅ d⋅ f λ)2 ( 4 π ⋅ d ⋅ f λ) 2. Free space path loss (fspl) calculations are often used to help predict rf signal strength in an antenna system. Free space path loss (fspl) calculations are often used to help predict rf signal strength in an antenna system.
